Low Loss Power Distribution Switch with Programmable Current limit
- Parameters
- Features
- Description
| Part Number | SY20812CAAT |
|---|
| Vin_min (V) | 2.5 |
|---|
| Vin_max (V) | 5.5 |
|---|
| Io_max (A) | 0.1~2.5 |
|---|
| Rdson1 | 65 |
|---|
| Channels | 1 |
|---|
| Enable | Active High |
|---|
| Protection Mode | |
|---|
| Features / Special Function | Programmable Current Limit,Reverse Blocking |
|---|
| Package | SOT23-5 |
|---|
- Input Voltage: 2.5V to 5.5V
- Extremely Low Power Path Resistance: 65mΩ (typ.)
- Adjustable Current Limit from 100mA to 2.5A
- Over Temperature Shutdown and Automatic Retry
- Reverse Blocking (No Body Diode)
- Output Capacitor Auto-discharge
- Built-in Soft-start
- RoHS Compliant and Halogen Free
- Compact Package Minimizes the Board Space: SOT23-5
The SY20812C, ultra-low RDS(ON) switch with a resistor programmable current limit operates over an input voltage range of 2.5V to 5.5V. The device can be used to protect a power source from overcurrent and short-circuit conditions. It incorporates overtemperature protection and reverse blocking functions.
Evaluation Board

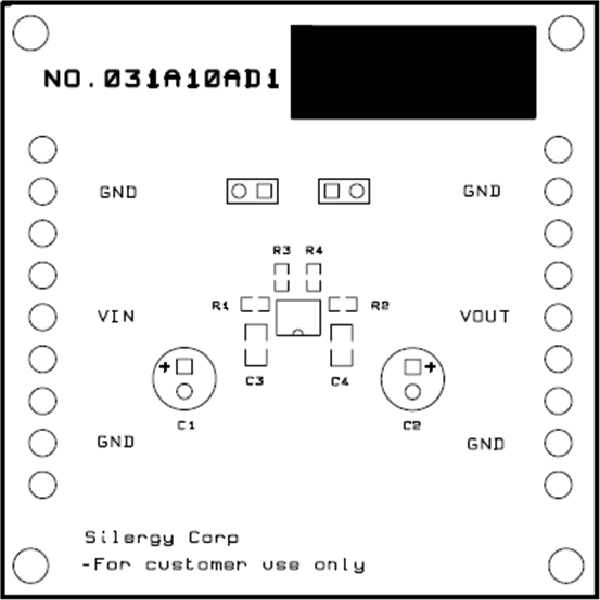

Photo of evaluation board

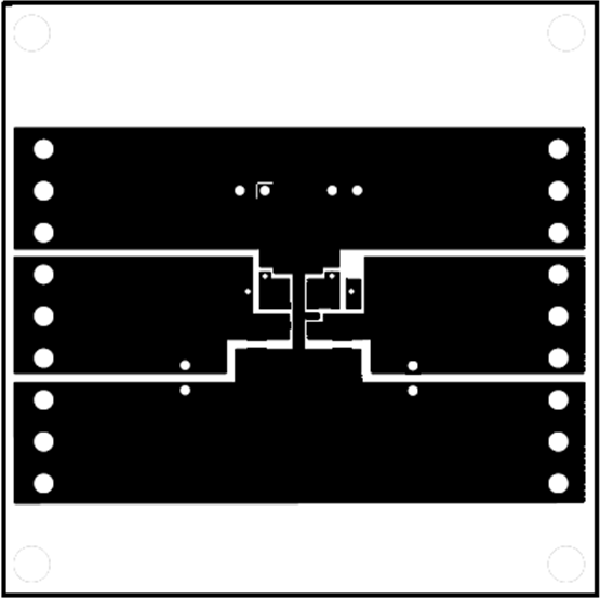

Photo of evaluation board

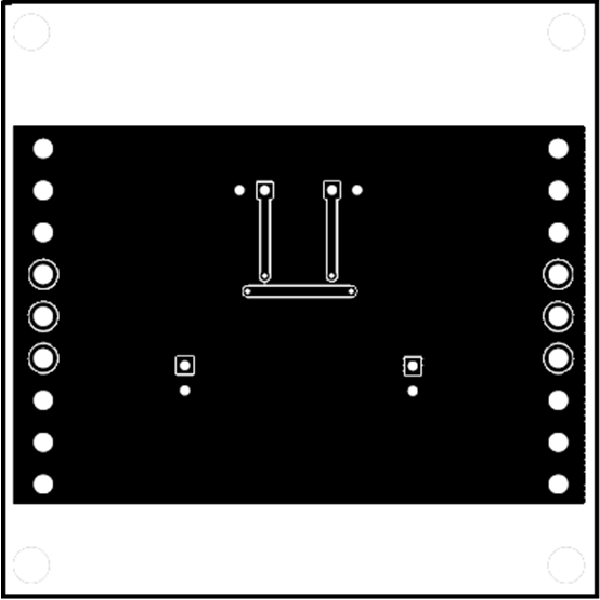

Photo of evaluation board
The EVB_SY20812CAAT is used for evaluating an ultra-low RDS(ON) Power Distribution switch with current limit to protect the power source from over current and short circuit conditions.
